3.5 Pocket Banknote Counter / Sorter
AP35
Fitness sorter

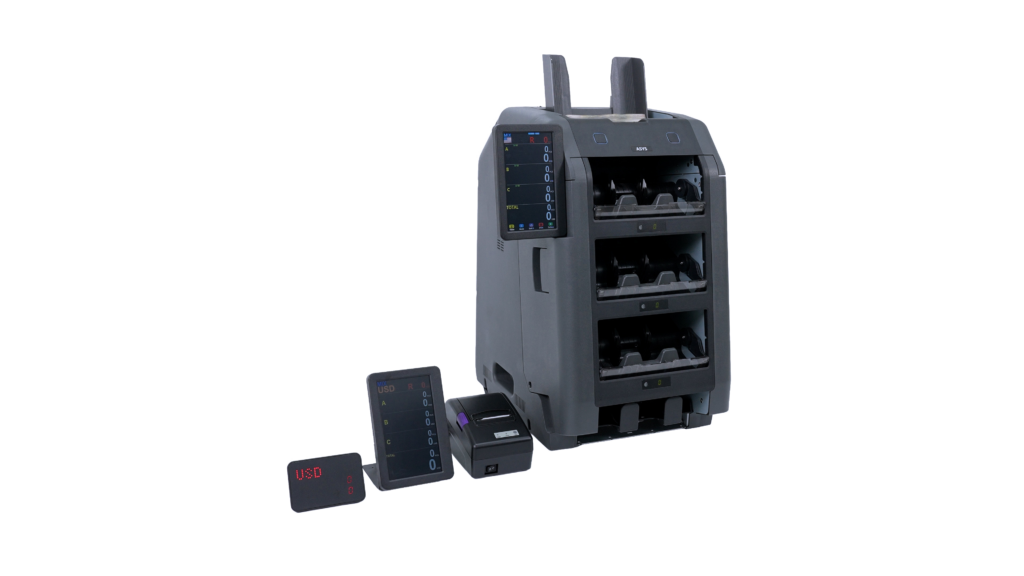

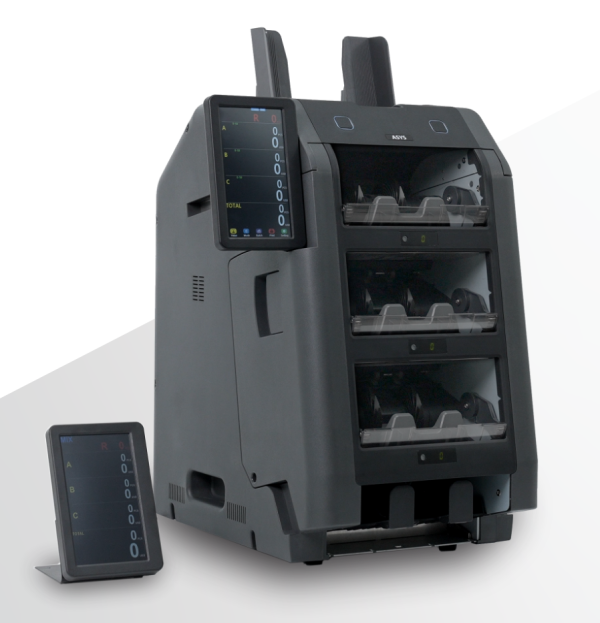

▣ Product view

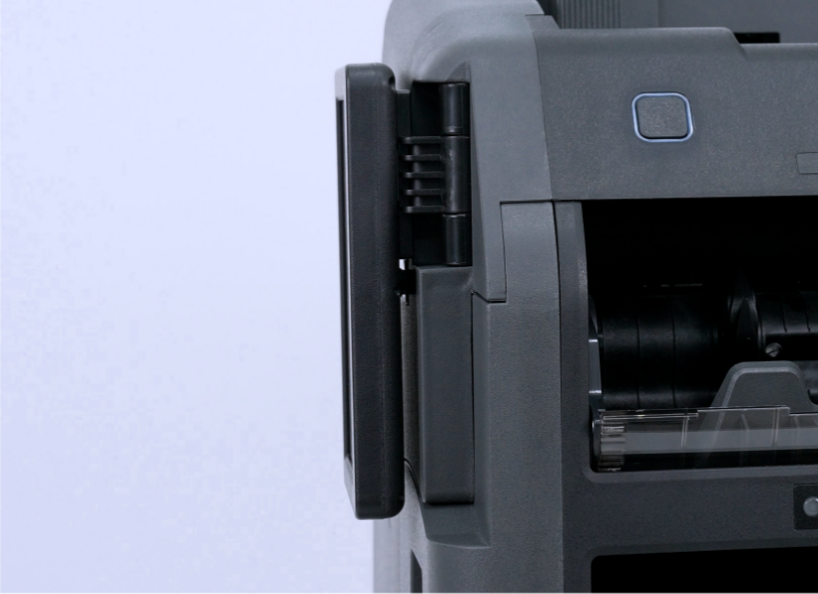

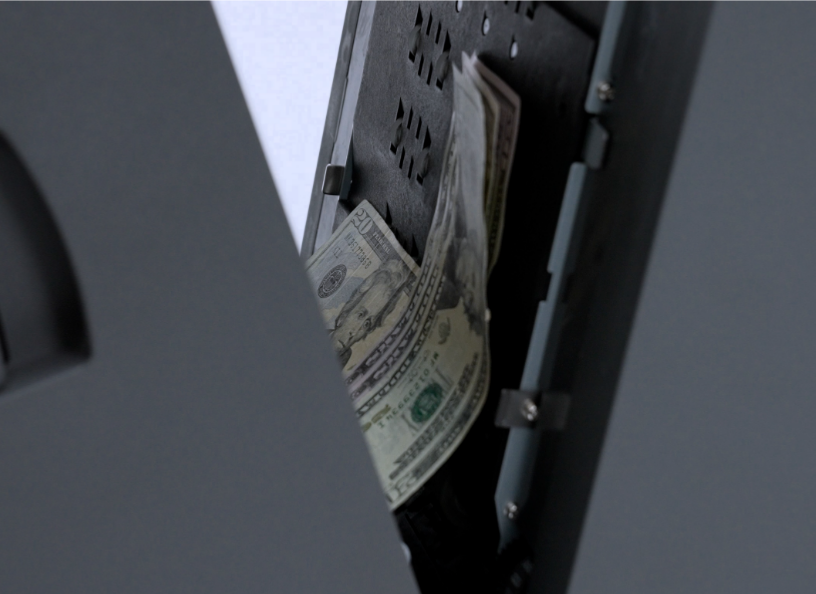

▣ User Convenience & Easy Maintenance
▣ Option
▣ Feature
- Image processing technology
- User Convenience

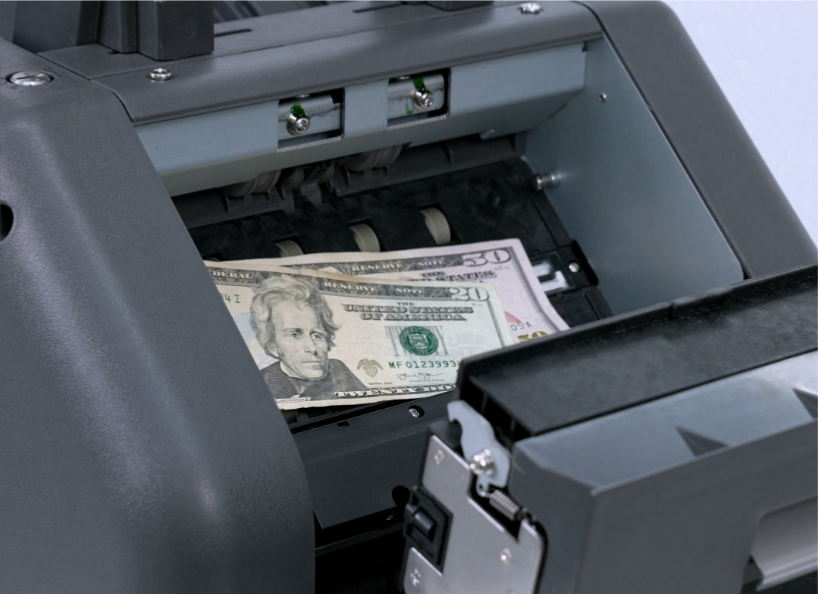

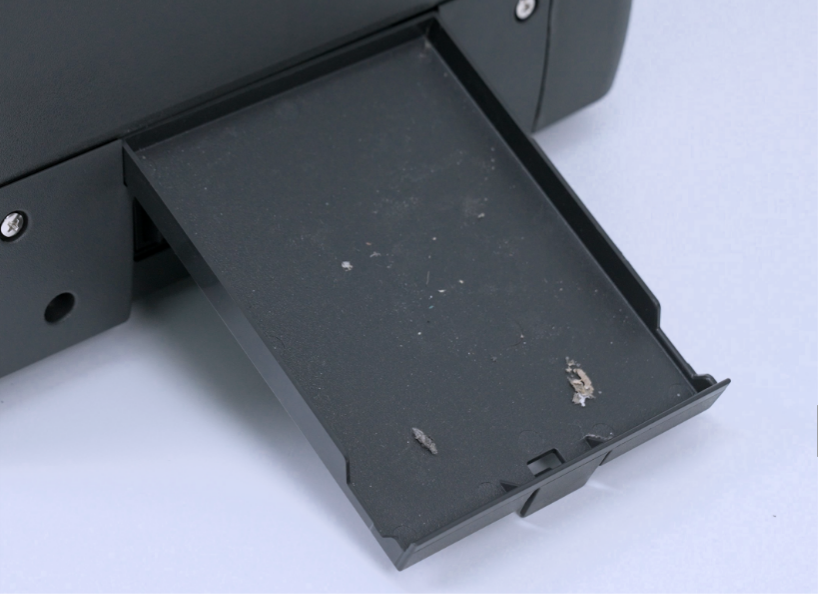

- Easy Maintenance
- PC application(Network)
- 50 currencies installation
- Available for 100 currencies
- Multiple Currency Count(Max. 50 currencies)
- Simple Banknote Sorting
▣ Specification
| Items | Detail Information |
|---|---|
|
Banknote Recognition Detection |
|
|
Dual Contact Image Sensor(CIS) |
|
|
IR Reflection(Front & Rear) |
|
|
IR Transmission |
|
|
Magnetic(MG, 18CH Full Line) |
|
|
Ultraviolet(UV Spot Reflection FL) |
|
|
Tape(Mechanism Type 12CH Full Line) |
|
|
Count Speed |
|
|
Value Counting : Max 1200 Note/Min |
|
|
Serial number Recognition : Max 1200 Note/Min |
|
|
Fitness Counting : Max 1200 Note/Min |
|
|
Pocket Capacity(1+1) |
|
|
Hopper : 1000 notes / Reject : 150 notes / Stacker : 250 notes |
|
|
Currency |
|
|
Max. 50 currencies / Auto/Multi currency with Max. 50 |
|
|
Display |
|
|
7inch Touch Display |
|
|
Power Supply |
|
|
100~240V / 50~60Hz |
|
|
Interface |
|
|
LAN(1Gbps) – PC Communication, Remote upgrade |
|
|
Serial Communication / USB Upgrade |
|
|

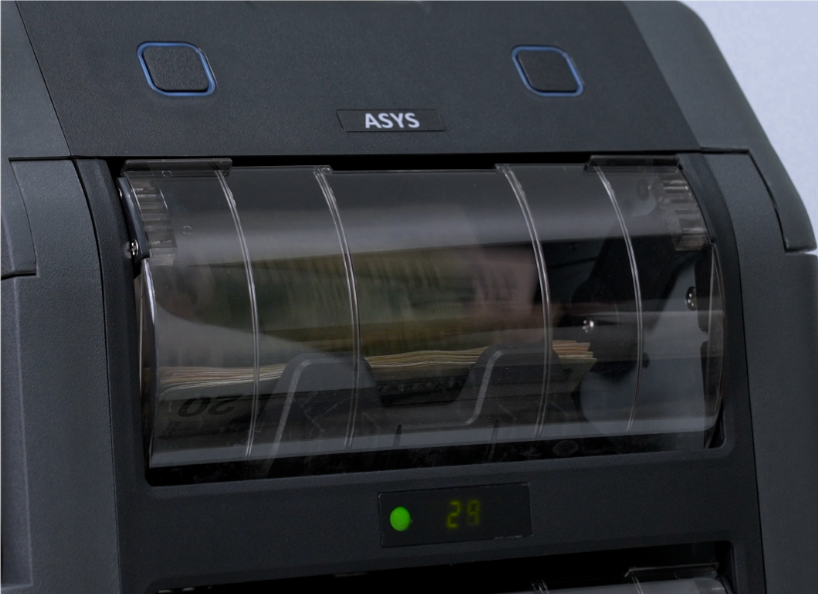

Auto Dust Cover |
|
|
Option |
|
|

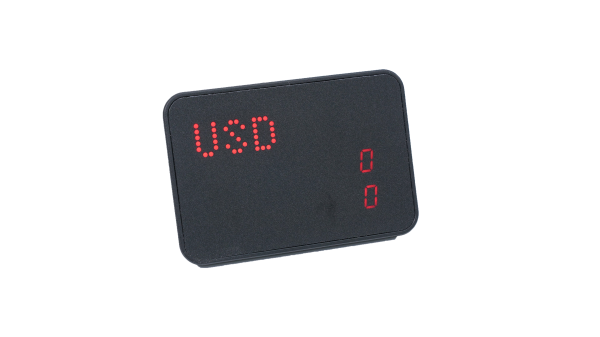

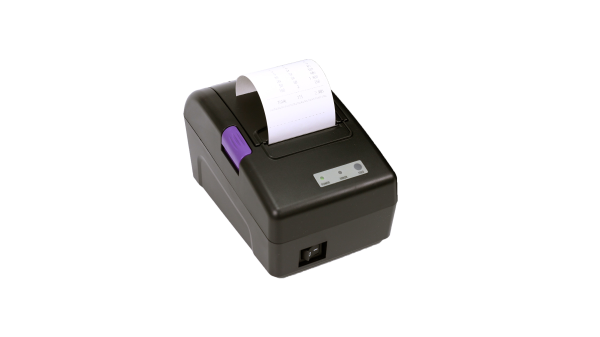

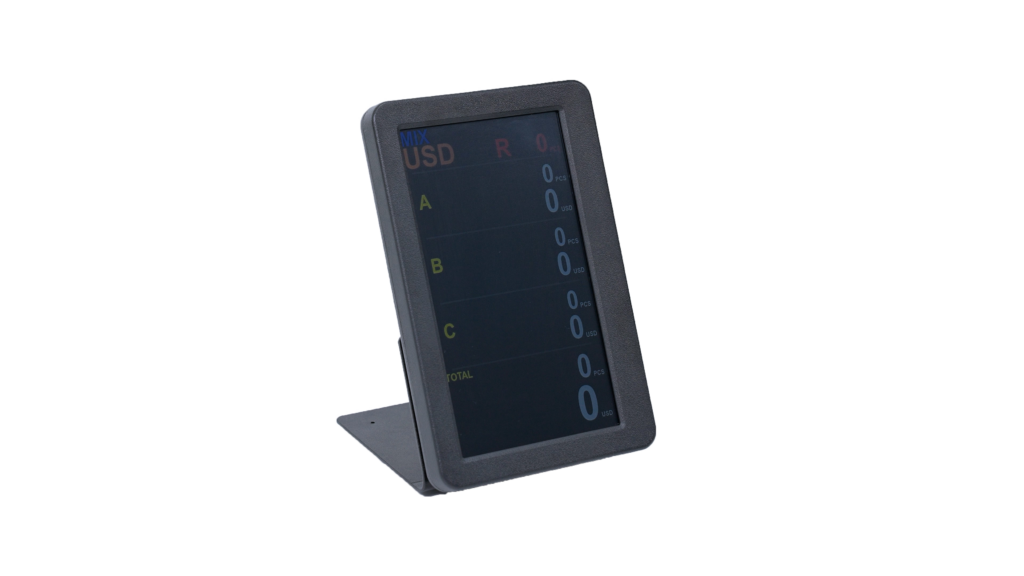

Customer Display, Printer |
|
|
Dimension |
|
|
(W x D x H) 356mm x 467mm x 574mm |
|
|
Weight |
|
|
N.W 28kg, G.W 13.5kg |
|
